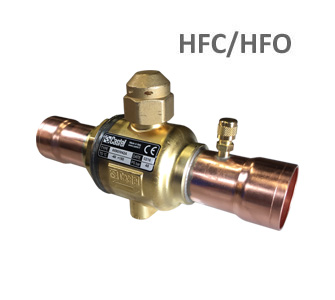

Castel ball valves HFC/HFO

Connections: ODS
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -40 to +150 ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

Returning customers can login to see gross prices.
See table below in tabs for specifications of all types.

Clear

SKU: N/A Category: Ball valves Tags: appendages, ball valves, castel, hfc/hfo

Description

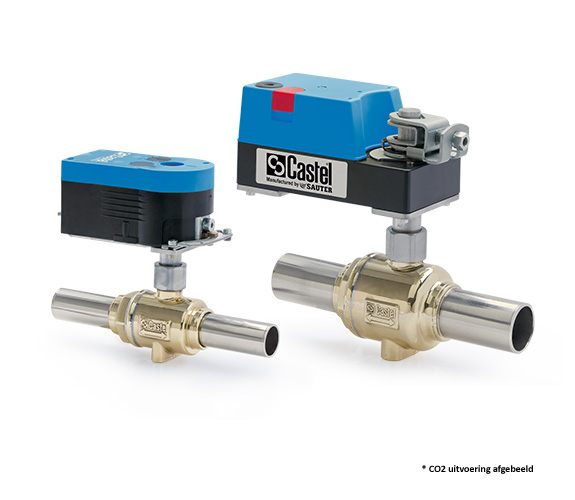

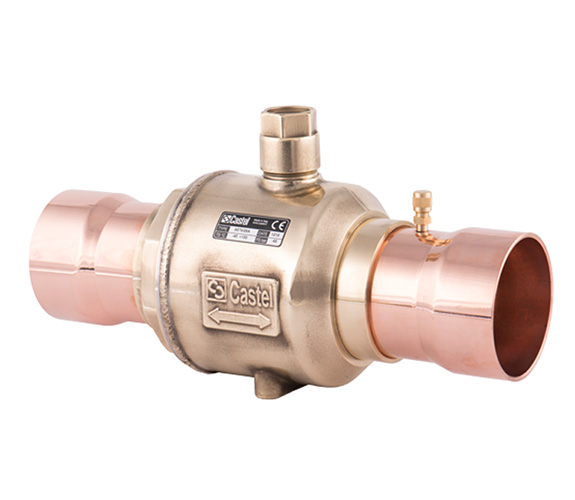

The Castel ball valves are available in standard manual and motorized version. The motor controlled ball valves are available in through and 3 way versions. The ball valves have a very high Kv value and therefore little resistance. All Castel ball valves are fitted with M4 or M6 tapped holes at the bottom.

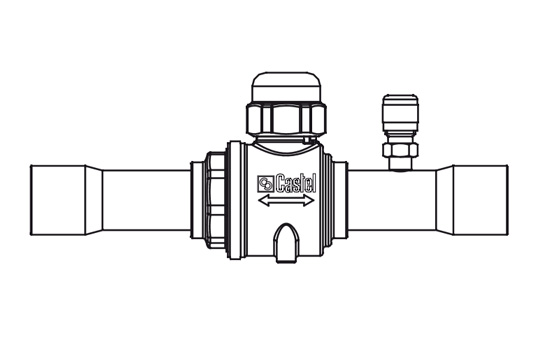

The “A” models supplied by us are equipped with a schräder valve.

Please see next tabs for all types and specifications.

Standard

Type	Conn.	Conn. [in.]	Conn. [mm]	Kv [m3/h]	PS [bar]	TS [°C] min/max	Art. nr.
6570/M6A	Cu	-	6	0,8	45	-40 / +150	..
6570/2	Cu	1/4"	-	0,8	45	-40 / +150	180348
6570/2A	Cu	1/4"	-	0,8	45	-40 / +150	..
6570/3A	Cu	3/8"	-	3	45	-40 / +150	180351
6570/M10A	Cu	-	10	3	45	-40 / +150	..
6570/M12A	Cu	-	12	5	45	-40 / +150	..
6570/4A	Cu	1/2"	-	5	45	-40 / +150	180353
6570/M15A	Cu	-	15	17	45	-40 / +150	..
6570/5A	Cu	5/8"	16	17	45	-40 / +150	180357
6570/M18A	Cu	-	18	17	45	-40 / +150	..
6570/6A	Cu	3/4"	-	17	45	-40 / +150	..
6570/7A	Cu	7/8"	22	29	45	-40 / +150	180375
6570/M28A	Cu	-	28	51	45	-40 / +150	180378
6570/9A	Cu	1.1/8"	-	51	45	-40 / +150	180356
6590/11A	Cu	1.3/8"	35	86	45	-40 / +150	180382
6590/13A	Cu	1.5/8"	-	117	45	-40 / +150	..
6590/M42A	Cu	-	42	117	45	-40 / +150	180386
6590/17A	Cu	2.1/8"	54	214	45	-40 / +150	180390
6570/M64A	Cu	-	64	380	45	-40 / +150	..
6570/21A	Cu	2.5/8"	-	380	45	-40 / +150	180392
6570/24A	Cu	3"	76	550	45	-40 / +150	..
6570/25A	Cu	3.1/8"	80	550	45	-40 / +150	180393
6570/28A	Cu	3.1/2"	89	710	45	-40 / +150	..
6570/29A	Cu	3.5/8"	92	710	45	-40 / +150	..
6591/M64A	Cu	-	64	214	45	-40 / +150	..
6591/21A	Cu	2.5/8"	-	214	45	-40 / +150	180394
6571/24A	Cu	3"	76	380	45	-40 / +150	..
6571/25A	Cu	3.1/8"	80	380	45	-40 / +150	..
6571/28A	Cu	3.1/2"	89	550	45	-40 / +150	..
6571/29A	Cu	3.5/8"	92	550	45	-40 / +150	..
6571/33A	Cu	4.1/8"	105	660	45	-40 / +150	..
6571/34A	Cu	4.1/4"	108	660	45	-40 / +150	..

Motorized

Type	Power [W]	Conn.	Conn. [in.]	Conn. [mm]	Kv [m3/h]	PS [bar]	TS [°C] min/max	Art. nr.
6570/3A-RA2	4,8	Cu	3/8"	-	3	45	-40 / +150	..
6570/4A-RA2	4,8	Cu	1/2"	-	5	45	-40 / +150	..
6570/5A-RA2	4,8	Cu	5/8"	16	17	45	-40 / +150	..
6570/7A-RA2	4,8	Cu	7/8"	22	29	45	-40 / +150	..
6570/7A-RA6	2,9	Cu	7/8"	22	29	45	-40 / +150	..
6570/M28A-RA2	4,8	Cu	-	28	51	45	-40 / +150	..
6570/M28A-RA6	2,9	Cu	-	28	51	45	-40 / +150	..
6570/9A-RA2	4,8	Cu	1.1/8"	-	51	45	-40 / +150	..
6570/9A-RA6	2,9	Cu	1.1/8"	-	51	45	-40 / +150	..
6590/11A-RA2	2,4	Cu	1.3/8"	35	86	45	-40 / +150	..
6590/11A-RA6	3,7	Cu	1.3/8"	35	86	45	-40 / +150	..
6590/M42A-RA2	2,4	Cu	-	42	117	45	-40 / +150	..
6590/M42A-RA6	3,7	Cu	-	42	117	45	-40 / +150	..
6590/17A-RA2	2,4	Cu	2.1/8"	54	214	45	-40 / +150	..
6590/17A-RA6	3,7	Cu	2.1/8"	54	214	45	-40 / +150	..
6570/M64A-RA2	13,5	Cu	-	64	380	45	-40 / +150	..
6570/M64A-RA6	12	Cu	-	64	380	45	-40 / +150	..
6570/21A-RA2	13,5	Cu	2.5/8"	-	380	45	-40 / +150	..
6570/21A-RA6	12	Cu	2.5/8"	-	380	45	-40 / +150	..
6570/24A-RA2	13,5	Cu	3"	76	550	45	-40 / +150	..
6570/24A-RA6	12	Cu	3"	76	550	45	-40 / +150	..
6570/25A-RA2	13,5	Cu	3.1/8"	80	550	45	-40 / +150	..
6570/25A-RA6	12	Cu	3.1/8"	80	550	45	-40 / +150	..
6570/28A-RA2	13,5	Cu	3.1/2"	89	710	45	-40 / +150	..
6570/28A-RA6	12	Cu	3.1/2"	89	710	45	-40 / +150	..
6570/29A-RA2	13,5	Cu	3.5/8"	92	710	45	-40 / +150	..
6570/29A-RA6	12	Cu	3.5/8"	92	710	45	-40 / +150	..
6591/M64A-RA2	2,4	Cu	-	64	214	45	-40 / +150	..
6591/M64A-RA6	3,7	Cu	-	64	214	45	-40 / +150	..
6591/21A-RA2	2,4	Cu	2.5/8"	-	214	45	-40 / +150	..
6591/21A-RA6	3,7	Cu	2.5/8"	-	214	45	-40 / +150	..
6571/24A-RA2	13,5	Cu	3"	76	380	45	-40 / +150	..
6571/24A-RA6	12	Cu	3"	76	380	45	-40 / +150	..
6571/25A-RA2	13,5	Cu	3.1/8"	80	380	45	-40 / +150	..
6571/25A-RA6	12	Cu	3.1/8"	80	380	45	-40 / +150	..
6571/28A-RA2	13,5	Cu	3.1/2"	89	550	45	-40 / +150	..
6571/28A-RA6	12	Cu	3.1/2"	89	550	45	-40 / +150	..
6571/29A-RA2	13,5	Cu	3.5/8"	92	550	45	-40 / +150	..
6571/29A-RA6	12	Cu	3.5/8"	92	550	45	-40 / +150	..
6571/33A-RA2	13,5	Cu	4.1/8"	105	660	45	-40 / +150	..
6571/33A-RA6	12	Cu	4.1/8"	105	660	45	-40 / +150	..
6571/34A-RA2	13,5	Cu	4.1/4"	108	660	45	-40 / +150	..
6571/34A-RA6	12	Cu	4.1/4"	108	660	45	-40 / +150	..

Motorized 3-way

Type	Power [W]	Conn.	Conn. (in.)	Conn. (mm)	Kv [m3/h]	PS [bar]	TS [°C] min/max	Art. nr.
6690M/7-RA2	4,8	Cu	7/8"	22	10,7	45	-40 / +150	..
6690M/7-RA6	2,9	Cu	7/8"	22	10,7	45	-40 / +150	186105
6690M/M28-RA2	4,8	Cu	-	28	15,9	45	-40 / +150	..
6690M/M28-RA6	2,9	Cu	-	28	15,9	45	-40 / +150	..
6690M/9-RA2	4,8	Cu	1.1/8"	-	15,9	45	-40 / +150	..
6690M/9-RA6	2,9	Cu	1.1/8"	-	15,9	45	-40 / +150	..
6690M/11-RA2	2,4	Cu	1.3/8"	35	20,3	45	-40 / +150	..
6690M/11-RA6	3,7	Cu	1.3/8"	35	20,3	45	-40 / +150	..
6690M/13-RA2	2,4	Cu	1.5/8"	-	38,5	45	-40 / +150	..
6690M/13-RA6	3,7	Cu	1.5/8"	-	38,5	45	-40 / +150	..
6690M/M42-RA2	2,4	Cu	-	42	38,5	45	-40 / +150	..
6690M/M42-RA6	3,7	Cu	-	42	38,5	45	-40 / +150	..

Motors, switches and adapters.

See this productpage for motors, switches and adapters for Castel motorized ball valves.
