Castel check valves HFC/HFO

Connections: ODS, flare – male/male
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 en R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -40/-35 tot +105/150ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

Returning customers can login to see gross prices.
See table below in tabs for specifications of all types.

Clear

SKU: N/A Category: Check valves Tags: appendages, castel, check valves, hfc/hfo

Description

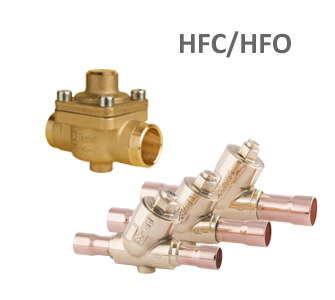

The Castel check valves are available in many versions:

1. With flare connections from 1/4 “to 3/4”.
2. With solder connections in straight version from 1/4 “to 54mm.
3. With solder connections in angled version from 22 to 54 mm.

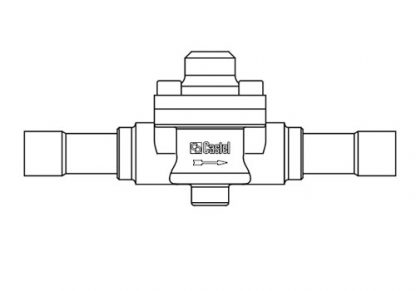

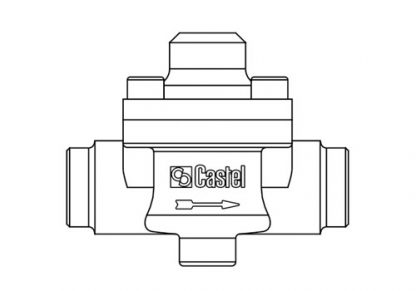

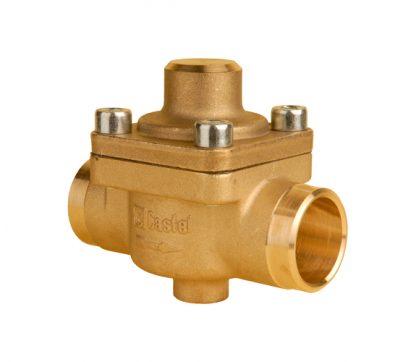

The straight versions are available with a valve (type 3122 / ..) placed vertically on the housing or with a valve placed at an angle to the housing (types 3124 / .. & 3144 / ..).

Please see next tabs for all types and specifications.

Types and connections (straight)

Type 3185W is equipped with stronger spring.
Type 3184W and 3185W is not suitable for R22.

Type	Connection	Conn. [in.]	Conn. [mm]	Kv [m3/h]	P diff [bar]	PS [bar]	TS [°C] min/max	Art. nr.
3112W/2	Flare male/male	1/4"	-	0,5	0,04	45	-40 / +150	180510
3112W/3	Flare male/male	3/8"	-	1,5	0,04	45	-40 / +150	180512
3112W/4	Flare male/male	1/2"	-	1,8	0,04	45	-40 / +150	180515
3112W/5	Flare male/male	5/8"	-	3,3	0,04	45	-40 / +150	180517
3113W/2	Flare male/male	1/4"	-	0,5	0,3	45	-40 / +150	..
3113W/3	Flare male/male	3/8"	-	1,5	0,3	45	-40 / +150	..
3113W/4	Flare male/male	1/2"	-	1,8	0,3	45	-40 / +150	..
3113W/5	Flare male/male	5/8"	-	3,3	0,3	45	-40 / +150	..
3122/M22	ODS brass	-	22	6,6	0,1	45	-35 / +160	180599
3122/7	ODS brass	7/8"	-	6,6	0,1	45	-35 / +160	180604
3122/M28	ODS brass	-	28	8,8	0,1	45	-35 / +160	180603
3122/9	ODS brass	1.1/8"	-	8,8	0,1	45	-35 / +160	180606
3122/11	ODS brass	1.3/8"	35	15,2	0,1	45	-35 / +160	180581
3122/13	ODS brass	1.5/8"	-	25	0,1	45	-35 / +160	180582
3122/M42	ODS brass	-	42	25	0,1	45	-35 / +160	180615
3122/17	ODS brass	2.1/8"	54	40	0,1	45	-35 / +160	180585
3132W/2	ODS Cu	1/4"	-	0,5	0,04	45	-40 / +150	180525
3132W/3	ODS Cu	3/8"	-	1,5	0,04	45	-40 / +150	180527
3132W/4	ODS Cu	1/2"	-	1,8	0,04	45	-40 / +150	180530
3132W/5	ODS Cu	5/8"	16	3,3	0,04	45	-40 / +150	180532
3132W/7	ODS Cu	7/8"	22	5	0,04	45	-40 / +150	180534
3133W/2	ODS Cu	1/4"	-	0,5	0,3	45	-40 / +150	180536
3133W/3	ODS Cu	3/8"	-	1,5	0,3	45	-40 / +150	180538
3133W/4	ODS Cu	1/2"	-	1,8	0,3	45	-40 / +150	180540
3133W/5	ODS Cu	5/8"	16	3,3	0,3	45	-40 / +150	180544
3133W/7	ODS Cu	7/8"	22	5	0,3	45	-40 / +150	180546
3144W/7	ODS Cu	7/8"	22	8,1	0,04	45	-40 / +150	180630
3144W/M28	ODS Cu	-	28	10,4	0,04	45	-40 / +150	180632
3144W/9	ODS Cu	1.1/8"	-	10,4	0,04	45	-40 / +150	180634
3144W/11	ODS Cu	1.3/8"	35	15,6	0,04	45	-40 / +150	180636
3144W/13	ODS Cu	1.5/8"	-	27	0,04	45	-40 / +150	180629
3144W/M42	ODS Cu	-	42	27	0,04	45	-40 / +150	180631
3144W/17	ODS Cu	2.1/8"	54	39	0,04	45	-40 / +150	180633
3144W/21	ODS Cu	2.5/8"	-	39	0,04	45	-40 / +150	180635
3144W/25	ODS Cu	3.1/8"	-	39	0,04	45	-40 / +150	180637
3145W/7	ODS Cu	7/8"	22	8,1	0,3	45	-40 / +150	180638
3145W/M28	ODS Cu	-	28	10,4	0,3	45	-40 / +150	180640
3145W/9	ODS Cu	1.1/8"	-	10,4	0,3	45	-40 / +150	180642
3145W/11	ODS Cu	1.3/8"	35	15,6	0,3	45	-40 / +150	180644
3145W/13	ODS Cu	1.5/8"	-	27	0,3	45	-40 / +150	180646
3145W/M42	ODS Cu	-	42	27	0,3	45	-40 / +150	180648
3145W/17	ODS Cu	2.1/8"	54	39	0,3	45	-40 / +150	180647
3145W/21	ODS Cu	2.5/8"	-	39	0,3	45	-40 / +150	180645
3145W/25	ODS Cu	3.1/8"	-	39	0,3	45	-40 / +150	180643

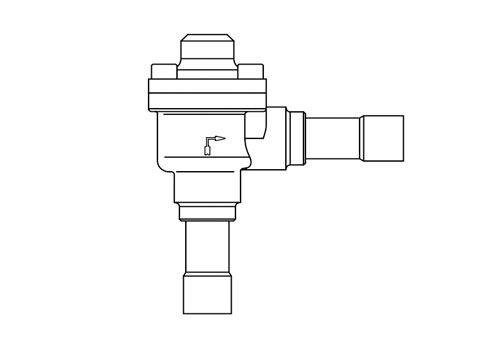

Types and connections (right angle)

Type 3185W is equipped with stronger spring.
Type 3184W and 3185W is not suitable for R22.

Type	Connection	Conn. [in.]	Conn. [mm]	Kv [m3/h]	P diff [bar]	PS [bar]	TS [°C] min/max	Art. nr.
3184W/7	ODS Cu	7/8"	22	9	0,04	45	-40 / +150	180650
3184W/M28	ODS Cu	-	28	19	0,04	45	-40 / +150	180652
3184W/9	ODS Cu	1.1/8"	-	19	0,04	45	-40 / +150	..
3184W/11	ODS Cu	1.3/8"	35	29	0,04	45	-40 / +150	180654
3185W/7	ODS Cu	7/8"	22	9	0,3	45	-40 / +150	180651
3185W/M28	ODS Cu	-	28	19	0,3	45	-40 / +150	180653
3185W/9	ODS Cu	1.1/8"	-	19	0,3	45	-40 / +150	..
3185W/11	ODS Cu	1.3/8"	35	29	0,3	45	-40 / +150	180655
3182/13	ODS Cu	1.5/8"	-	37	0,1	45	-40 / +150	..
3182/M42	ODS Cu	-	42	37	0,1	45	-40 / +150	180656
3182/17	ODS Cu	2.1/8"	54	45,4	0,1	45	-40 / +150	180658
