Name: Castel filter drier HC
SKU: 898
Availability: InStock

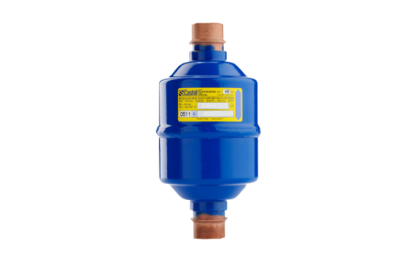

Castel filter drier HC

Connections: ODS
Suitable for: HC refrigerants such as R290 (propane), R600a (isobutane)
Maximum pressure (PS): 24 – 45bar*
Temperature range (TS): -40 to +80 ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

Returning customers can login to see gross prices.
See table below in tabs for specifications of all types.

Description

The Castel filter driers for HC are available with solder connections. They are 100% molecular sieve blocks. The construction of the filter driers is shock-resistant and the block shape is such that the refrigerant flow distributes optimally over the block. This gives the filter drier the highest drying efficiency and the least pressure loss.

These HC Castel filter driers are suitable for all HC refrigerants such as propane R290 and isobutane R600a.

Please see next tab for all types and specifications.

Types and connections

Type	Int. Code	Conn.	ODS [in.]	ODM [in.]	PS [bar]	TS [°C] min/max	Art. nr.
4303EX/2S	032S	Cu	1/4"	3/8"	45	-40 / +80	191100
4305EX/3S	053S	Cu	3/8"	1/2"	45	-40 / +80	191105
4308EX/3S	083S	Cu	3/8"	1/2"	45	-40 / +80	191110
4316EX/3S	163S	Cu	3/8"	1/2"	45	-40 / +80	191115
4308EX/4S	084S	Cu	1/2"	5/8"	45	-40 / +80	191120
4316EX/4S	164S	Cu	1/2"	5/8"	45	-40 / +80	191125
4330EX/4S	304S	Cu	1/2"	5/8"	45	-40 / +80	191130
4316EX/5S	165S	Cu	5/8"	3/4"	45	-40 / +80	191135
4330EX/5S	305S	Cu	5/8"	3/4"	45	-40 / +80	191140
4330EX/7S	307S	Cu	7/8"	1.1/8"	45	-40 / +80	191145
4375EX/7S	757S	Cu	7/8"	1.1/8"	24	-40 / +80	191150
4330EX/9S	309S	Cu	1.1/8"	1.3/8"	45	-40 / +80	191155
4375EX/9S	759S	Cu	1.1/8"	1.3/8"	24	-40 / +80	191160
